Product ID: | XNT-MS08-H150 |

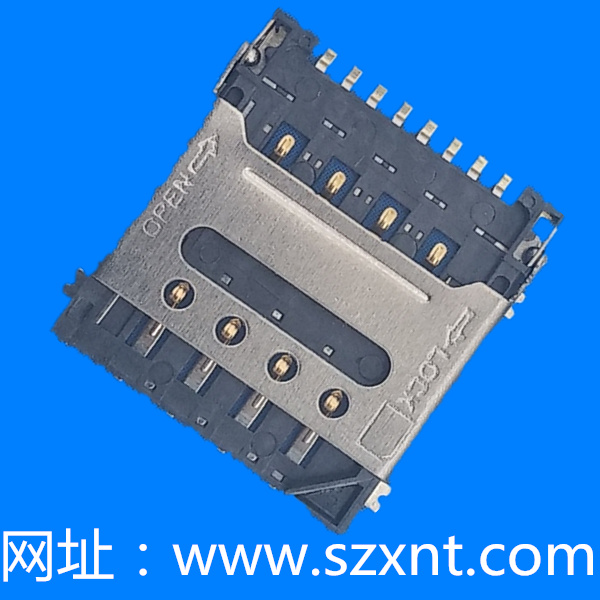

product name: | microSim6Pin clamshell 1.75 high |
specification: | Plastic: black high temperature UL94V-0; terminal: copper alloy; shell: stainless steel |
Product Note: | Clamshell type without CD terminal, L16.35*W14.66*H1.75 |
Product Category: | SIM microSim NanoSIM |
Technical parameters:
1. Rated current: 1A AC/DC
2. Rated voltage: 30V AC/DC
3. Operating temperature: -25°C ~ +65°C
4. Storage temperature: -25°C ~ +65°C
5. Contact resistance: 50m ohms max.
6. Withstanding voltage: 500V AC / 1 minute
7. Insulation resistance: 1000M ohms min./500VDC
8. Durability times: 5000 times
9. Product temperature resistance: 260±5°C 10S
10. Flatness: 0.10mm MAX.
11. RoHS compliant
12. Stable and superior performance
Product Description:
1. This connector is widely used in mobile phones, tablet PCs, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.
2. The inspection process for this product is: :IQC Feed Inspection-->Importing-->Pre-line self-test-->IPQC inspection-->FQC final inspection-->OQC cargo inspection 3.This
product production process is: pre-line inspection-->fold Strips-->Assembled Enclosures-->Card Inspection-->Electrical Inspection-->Flatness Inspection-->Positive Inspection-->Appearance Inspection-->FQC Inspection-->Storage
XNT-MS08-H150-更新 Model (1).pdf
