Product ID: | 0091BAAG19Q9 |

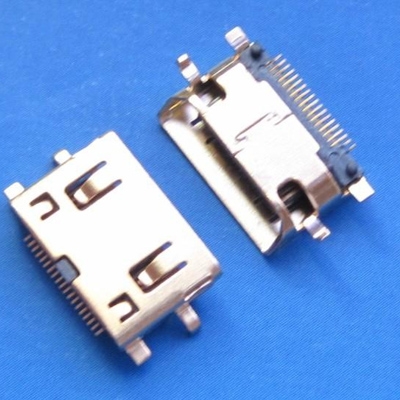

product name: | HDMI C TYPE Female Sinking 1.5mm (Long Body) Oblique |
specification: | Plastic: Black high temperature UL94V-0; Terminal: Copper alloy |
Product Note: | C type female head, sink 1.50mm type L14.20*W8.90*H3.20 |
Product Category: | HDMI series |
Technical parameters:
1. Rated current: 0.5A
2. Rated voltage: 40V
3. Operating temperature: -20 °C ~ +85 °C
4. Storage temperature: -20 °C ~ +85 °C
5. Contact resistance: 30m ohms max.
6 Insulation resistance: 100M ohms min./500VDC
7. Durability: 5000 times
8. Product temperature: 260±5°C 10S
9. RoHS Compliant
:
1. This connector is widely used in mobile phones, tablet computers, navigation devices , LCD TV, etc.;
2. This product inspection process is: IQC feed inspection -> into the warehouse -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. This Product production process is: pre-line inspection -> auto-machine molding -> assembled shell -> electrical test -> pressure test -> flatness test -> positive test -> appearance test -->FQC Inspection --> Storage
